Roundhouses: introduction

What are they?

Roundhouses are cylindrical – a common building shape that has popped up independently in many cultures and in many parts of the world throughout history. A circle would have been the most popular building footprint on the planet at one time – think mud huts, yurts, tipis(ish), igloos, wigwams (OK, they’re both domes), as well as hogans, crannogs, trulli, pallozas, rondavels, clochans and brochs. They’re not so widespread in the modern world, as buildings need to be square to fit closely together in today’s high-density urban areas. The reason they became so popular is possibly that a curved wall is relatively stable and self-supporting, whereas a linear wall is not, and can be wobbly until it’s fixed to something.

roundhouses 1

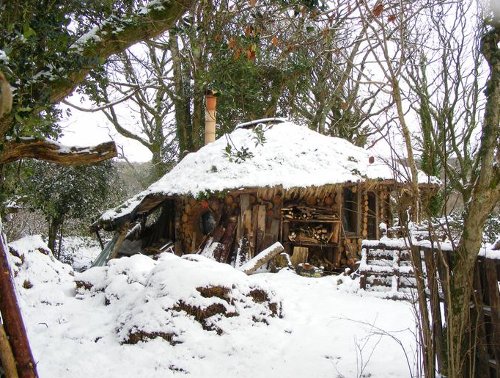

Tony Wrench’s famous home – ‘that roundhouse’ in Pembrokeshire; after a battle with the planning authorities, he’s been allowed to live there.

They can be made from most materials, in the same way that any other shaped house can. The most popular construction method currently in the UK is a timber frame (round or square timber) with walling infill. Loadbearing walls without a timber frame can also be used, using straw-bales (which have to be bent to shape – tricky), cob, stone or rammed earth. There are more options with infill – all the above materials can be used, as well as wattle & daub, cordwood or hempcrete. The advantage with timber frame is that you can put the roof on and have a dry space to construct the walls / add fittings etc.

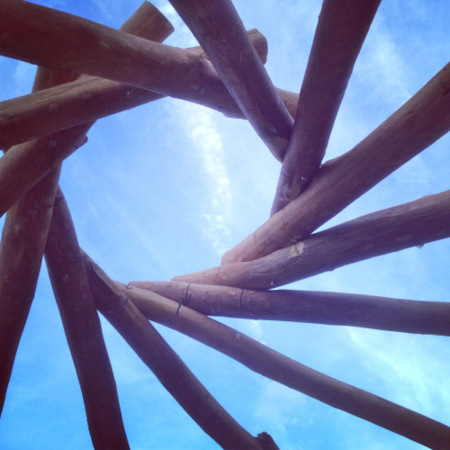

An interesting roofing option is the reciprocal frame roof. The most popular type has rafters radiating out like the spokes of a wheel – every rafter resting on the previous one, with no central support. The second most common reciprocal roof is the ‘whirling log’ variety, where there are no rafters, but instead, a set of ring beams radiate inwards from the walls, each one sitting on the previous one and twisted half a turn – i.e. the shape you would get if you sat one 50p on top of another so that the points of one overlay the flat edges of the one below – the coins getting smaller as they get higher. Alternatively, roundhouses can have a conventional roof where the tips of the rafters meet in the middle.

roundhouses 2

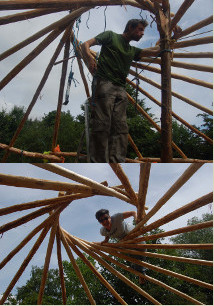

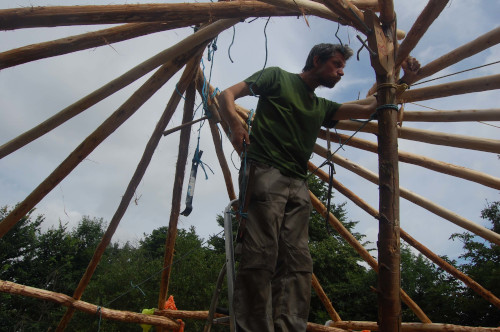

Top: about to remove the ‘Charlie stick’ from a reciprocal frame roof.
Bottom: and it stayed up.
(Wholewoods roundhouse in London).

Because reciprocal roofs usually have quite a flat pitch, they are often turfed. A turf roof looks right on a roundhouse, somehow. However there are plenty of examples of higher-pitched shingle or thatched roofs. A reciprocal frame roof places very little spreading load on the ring beam and upright posts (so it doesn’t tend to push the walls out), meaning that the roof needs no further bracing or tie beams.

What are the benefits?

  • the reason they appeared so often in history is possibly practical – a cylindrical shape is one of the easiest ways to make things stand up – try it with twigs
  • a cylindrical building has a lower surface area to volume ratio than any other shape (except a dome), reducing heat loss and making it easier and cheaper to heat
  • they also have a lower wind profile / sail effect than square or rectangular buildings, so are more stable and secure in high winds
  • they provide the maximum interior space for any given amount of materials (again, apart from domes)
  • many cultures have valued this shape for a variety of cultural and spiritual reasons; and people tend to enjoy them now because most of our buildings are square / right-angled and it provides a welcome change – literally, an out-of-the-box experience
  • our friend Adrian has built a lot of round structures for schools, and the reason they like them is that they create a non-hierarchical space, with everyone sitting in a circle
roundhouses 4

A rondavel roundhouse in Lesotho.

What can I do?

Attend a course and read books (especially Tony Wrench’s) to learn how to do it yourself, or hire a specialist to build one for you. If you’re going to build yourself, you can choose from various walling materials (see above), and they can potentially be more than one storey. Here are some tips for foundations and reciprocal frame roofs.

Foundations

There are two different types of foundation for basic roundhouses – buried post or free-standing.

roundhouses 5

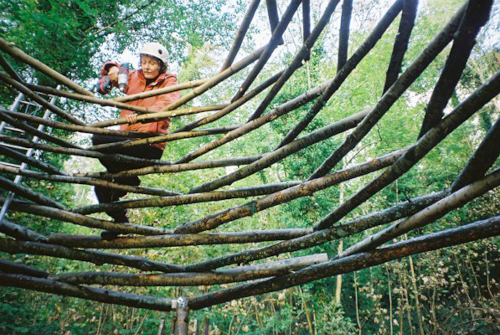

Constructing a ‘whirling log’ roof
(on a Wholewoods roundhouse course).

If you want to build a garden shed or playhouse for example, the buried post variety (i.e. Iron Age style) is the simplest, quickest and cheapest option. The frame is kept upright and rigid by burying the bases of the vertical posts into the ground – as deep as you can get with your arm. This requires very little in the way of carpentry skills – no complex mortice & tenon or other joints. Timbers can be tied, bolted, pegged or pinned together. The downside to this technique is that eventually the posts will rot off at ground level, making the structure unstable. There are a few ways to retard the rotting, however:

  1. pack the holes that the posts stand in with hardcore; depending on where your water table is, this could help drainage
  2. char the ends of the posts to make them more durable
  3. you can buy bitumen sleeves that go over the bottom of the posts when they’re buried
  4. strip the perishable bark and sapwood from the posts before burying

For serious, long-term or public buildings, roundhouses should be free-standing. Posts sit above ground level, away from moisture and soil. This means that the posts need to be properly jointed with mortice and tenons, with full, all-round wind bracing to ensure that the building is secure and stable.

roundhouses 5

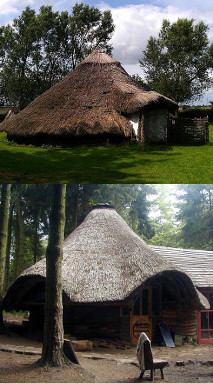

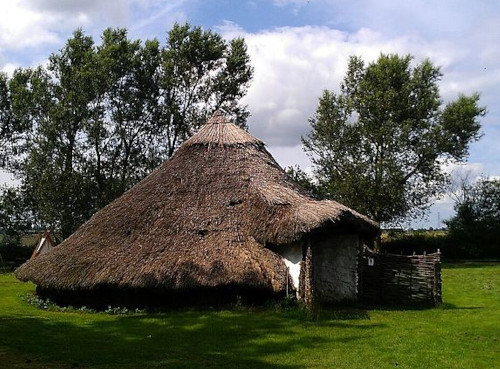

Top: reconstruction of a Bronze Age thatched roundhouse on the site of a Bronze Age village at Flag Fen museum near Peterborough.

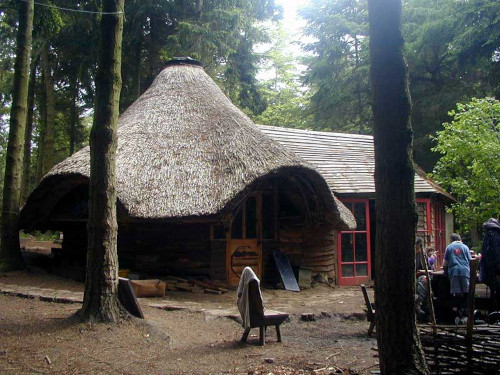

Bottom: a modern thatched roundhouse at Tinker’s Bubble community in Somerset.

Reciprocal frame roofs

Reciprocal frame roofs are fun to build. If you’ve never done it before, try it first with twigs, then progress to a full-sized version at ground level before attempting the real thing. You’ll need a ‘Charlie stick’ (a prop) to support the first rafter. Each successive rafter is balanced on the previous one. If your calculations are correct, there will be sufficient space to slot in the last rafter, after which you can pull away the Charlie stick and the roof will drop to its natural point of equilibrium. Make sure there’s no-one inside the building when you pull the stick out – just in case. Reciprocal roofs are easier to construct with roundwood. It’s easier to get them to locate – they will find their own resting place.

There are various systems to predetermine the geometry of a reciprocal frame roof, that are too complex to go into in much detail in a factsheet, but the quantities that are interdependent are a) the pitch of the roof, b) the number and thickness of the rafters, and c) the size of the ‘eye’ hole left in the middle. You can’t determine these values separately – any two will determine the third. Here is some more detailed information. Leonardo da Vinci created a few interesting reciprocal structures, including a bridge. There are also square and rectangular reciprocal roof designs, but the commonest shape is round. You can use some (long) matchsticks arranged reciprocally as a pub trick to hold a pint of beer above the table. This demonstrates the primarily downward rather than spreading load of the structure, and it stops you getting too drunk.

roundhouses 8

Roundhouse with a round wood frame, waiting for the roof to be covered and the walls to be infilled.
(Wholewoods roundhouse in Devon)

Reciprocal roofs tend to have an amount of natural flex or spring due to their self-supporting nature. This is a facet of the structure and not necessarily a reason for concern. However, it’s important to select strong timber species for the rafters, like larch, douglas fir, ash or chestnut, and not brittle or radially-branching species like sitka spruce.

If the pitch is too shallow, it can go flat or invert/collapse. It’s also possible to miscalculate and end up with a pitch too steep for turf, so you might have to dismantle it and start again, or use a different roofing material. NB: a turf roof needs to be battened between the rafters.



Thanks to Adrian Leaman of Wholewoods for information.
