Converting to ground source heating

Living in an older building but keen to heat your house with 100% renewable energy? Simon Lennane shares how he tackled an ambitious project converting his old cottage to ground source heating.


There’s been more recognition recently of heat pumps as an environmental friendly option for heating, having been included in the recent manifestos for the Green, Liberal Democrats and Labour parties. For new buildings, the best option is to reduce the need for heating in the first place by using techniques such as Passivhaus* technology, but heat pumps are an excellent heat source, enabling use of 100% renewable energy.

This is a description of how we retrofitted our 17th century cottage with ground source heating. It was an ambitious project, but in retrospect we are really pleased that we did it. The house is now a steady temperature, with warm floors and no draughts. Once installed, a ground source heating system is pretty much set and forget.

We live in a old cottage on the English side of the Welsh border. It was built in the 1600s as a two room house on a smallholding, at that time housing two families. Every century or so a room has been added on, so this time it was our turn, extending the kitchen. The oil-fired boiler was temperamental, so it was a good excuse to explore alternatives and get away from fossil fuels.

Ground source heat pumps basically bring in the warmth from the soil, which has accumulated over the summer. You could also see it the other way round, as taking the cold from the house and dumping it outside.

Digging the pit as part of converting to ground source heating

There is a small field / orchard next to the house, which was perfect for the heat collection system. This is a system of pipes, arranged in a grid, buried 6 feet beneath the ground, which harvests the trapped solar energy in the soil. Fluid is circulated from the heat pump around the grid, and it gets warmed from 0 to 3 degrees C by the time it gets back to the house. A heat exchanger (similar to that in a fridge) then transfers the heat to the underfloor heating system. Water constantly circulates through a network of pipes under the floors, somewhere between 25 and 40 degrees, gently warming the rooms.

The majority of the energy going into the house is direct solar energy, harvested from the warming of the soil over the summer. The energy investment is in running the pump, which brings the solar energy into the house, giving approximately a 4:1 return on energy invested.

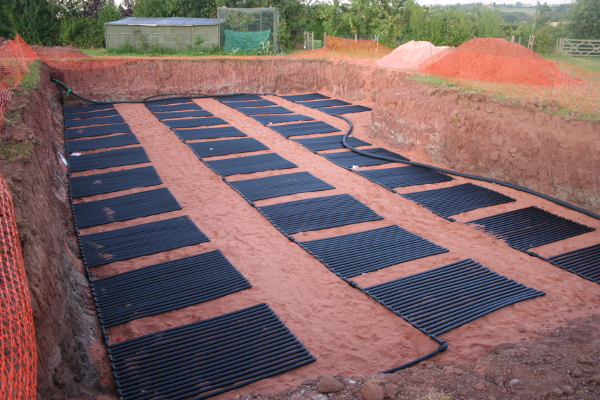

Ground source heat extractors in place

This shows the collectors installed in series, when they should be in parallel. That was complicated to fix – the builders put the soil back before they realised!

Even at a depth of 6 foot, the ground warms up during the summer, which renews the latent heat energy in the soil. When we have snow, the heat collector area is the last place it melts, showing that the ground here has lost some heat, though you couldn’t tell otherwise – the grass still grows on top. In fact, the ground work bringing the less fertile lower soil to the surface has helped a low nutrient meadow to flourish and encouraged lots of bee orchids.

Underfloor heating is great. The stone floors in the kitchen are lovely and warm on a dark winter morning. Getting rid of radiators is a bonus too. This opens up space, allowing furniture to be placed against walls, but also doesn’t create a draught. Underfloor heating works more like a massive hot water bottle, constantly being refreshed. The more surface area you have for this, the lower the temperature the circulating water can be, which is more efficient to run. Pipework runs under the floors, and similarly between the ceiling joists, pushing heat into the upstairs rooms and into the towel radiators, which get warmer the colder it is outside. You can circulate water through skirting boards if you need more surface area for the heat.

Ground source heating conversion : boiler room

The pump also does domestic hot water. Solar water panels use any sunlight to warm the water in the tank. In the evening, the heat pump brings the water up to 45 degrees if necessary, but it is turned off during the day to use direct solar energy wherever possible. Once a week it boosts the tank to 60 degrees to kill off bugs like Legionella.

How to do it

The collectors need a large underground surface area (50 sq m or so) for horizontal collectors, or a borehole for a vertical system. Going deep is more expensive but takes up less space, as you can’t plant trees or build on horizontal collectors once they are in the soil. Wet soil transfers heat better, and a pond would work. A river would be ideal, as you then can’t run out of latent heat. Insulated pipework connects the collectors to the heat pump in the house. The heat transfer liquid is basically water with some blue stuff added to stop it freezing.

The heat pump itself is the size of a large fridge-freezer, with a smaller buffer tank next to it. The pump kicks in occasionally to warm up the circulating water going around the house, sounding like a loud fridge. The temperature outside is monitored and when it’s colder, the circulating fluid becomes warmer, but not much beyond 40 degrees C or so.

We dug out the downstairs floors down to the soil. This was covered with deep foam insulation, and then some stuff like egg trays, holding thin circulating pipes at 10cm intervals. This was covered in concrete, and then a wooden or stone floor on top. We took the downstairs ceilings down to do the same thing between the joists under the floors of the upstairs rooms.

Ready to install underfloor hearing pipes

Thermostats in each room set the flow of warm water via manifolds, so individual rooms can be set for time and temperature. In theory, you could even reverse the system to cool a house down.

The concrete screed is the most carbon intensive part of the project, which means it will take some years before we recoup the carbon used in making the change. I’d look into alternate floor substrates if doing it again (cob or pizet? – please comment if there is something suitable).

Installing underfloor elements

Obviously, insulation of the house is crucial to save wasting heat. We have as much insulation in the loft as we could fit in – up to a foot deep. Avoiding cold draughts is really important too. If you haven’t already put sealant along the gap under skirting boards, you should do this as soon as possible, as it really does make a difference to your heating bills.

In use

There’s only so much you can do with an old cottage in terms of insulation. The walls are thick but old, though the newer bit is well insulated. The heat transfer through joists and carpets upstairs is less good than stone & wooden floors downstairs, which warm quickly. The secret is to leave the rooms heating gently and constantly. There is some interesting research about perception of heat, which apparently is related to the heat that walls give off, but certainly stable heating without draughts feels comfortable at lower temperatures.

It’s hard to understand why heat pumps are not the default for new builds needing extra heat. It’s much cheaper and easier to install than to retrofit, and provides a very low maintenance way of generating heat from pure renewables. Using nearby parks or green spaces would be an ideal way of mixing natural space and renewable heating. If there isn’t space for the collector system it can go vertically via a borehole.
