LED lighting: introduction

What is LED lighting?

LEDs (light-emitting diodes) are semi-conductors that emit light via electroluminescence. An electric current is passed through the semi-conductor, whose electrons are agitated and emit light in the form of photons. This doesn’t involve very much heat (and the heat that is generated is dissipated), so LEDs are cool to the touch, even when illuminated. LED lighting differs from other light sources in the following ways:

  • Traditional incandescent light bulbs give off light in the form of electromagnetic radiation from a filament, simply because it’s hot.

incandescent

  • Halogen lamps work on the same principle as ordinary incandescent bulbs, but with a tungsten filament and filled with a halogen gas which stops the tungsten deteriorating; they are smaller, hotter, brighter and last longer than incandescent bulbs.

halogen

  • In fluorescent lighting, electricity excites mercury vapour in a tube, which emits short-wave radiation that makes a phosphor coating on the inside of the tube glow.

fluorescent

  • Compact fluorescent lamps (CFLs) were the first wave of energy-saving bulbs, that work on the same principle as fluorescent lighting; their tubes are smaller and bent so that the lamps fit into standard incandescent light fittings.

cfl

LED lighting takes energy saving a step further (see below).

History

Light emission from semi-conductors had been known about since the turn of the 20th century, but it wasn’t until the 1960s that the first visible red LED was developed. Other coloured LED lights were developed over the following years but the level of illumination that they provided was fairly low. In the 1970s, brighter LEDs were developed and used in fibre optics. LEDs began to be used in displays but you needed thousands of them gathered together to make a difference to the surrounding light. This continued to be an issue until the 21st century, when ways to produce more light from a single bulb were found.

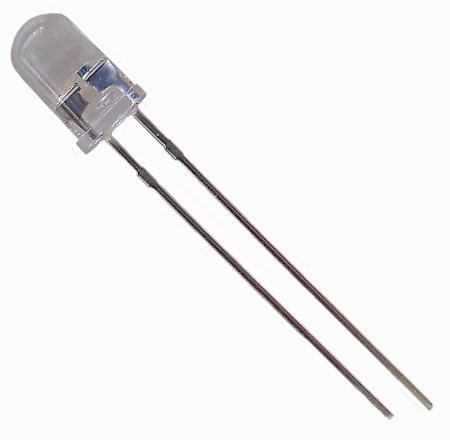

diode1

Light-emitting diode.

LEDs for homes and businesses are now available everywhere, and almost definitely represent the foreseeable future of lighting, until something more energy- and cost-effective is invented (or we learn to see in the dark).

LED lighting is now increasingly being used outside. Councils are turning to LED street lighting to help reduce costs in towns and cities; and sports clubs are changing their floodlights to lower their carbon emissions and improve lighting conditions for spectators and TV viewers. They are used more and more for vehicle lights too.

More on the history of lighting can be found here and on the history of LEDs here.

warehouse-led-lighting

What are the benefits of LED lighting?

Environmental

LED lights use less electricity – you can get a 90% reduction if you are replacing traditional filament bulbs and up to 30% if you are replacing more modern CFL or fluorescent ones.

They last much longer too. A standard LED bulb will outlast a CFL bulb by about five times (and an incandescent bulb by at least 20 times). Indeed, if you buy a good quality bulb you can expect it to last for more than 20 years.

They don’t require mercury, like compact fluorescent lighting, but although they contain arsenic and lead (less so the whiter the light), they are less of a toxicity hazard than fluorescent lights.

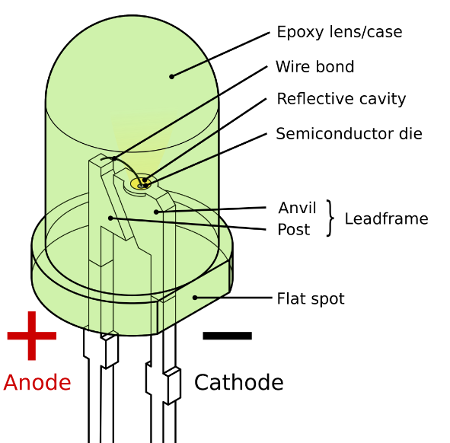

diode

LED basic design.

Cost

The cost of LEDs has always been an issue (you can expect to pay about £10 for a single bulb on average) but prices are falling and, if you take into account their longevity and low energy usage, they are now more efficient and more cost-effective that tungsten and CFL or fluorescent bulbs, despite the initial outlay. If you buy an LED bulb for £10 and it lasts 5 times as long as a CFL bulb which costs £2 you are already on a par. Add in the electricity cost savings and you can see the overall benefit. According to GMI Energy, replacing 40 58W fluorescent strip lights with 40 20W LED lights can save in excess of £1,300 a year on utility bills for a business.

The Energy Saving Trust carried out field trials on over 4000 LED fittings in 35 social housing locations and found that light levels improved and energy consumption and costs were dramatically reduced, as was the cost of maintenance. And here’s a 2012 article (when bulbs cost around £25 each) from the Guardian, explaining how LEDs could help you save hundreds of pounds per year. Very roughly, replacing filament bulbs with LEDs is likely to save you at least £10 per year per bulb, if used for around 4 hours per day. It used to be seen as mean to take your light bulbs with you when you move house – but with LEDs, if the house you’re moving to doesn’t have them, you’d be crazy not to!

For businesses, installing LED in offices and other premises can not only reduce the amount of electricity you use but also reduce the Climate Change Levy that is paid through utility bills.

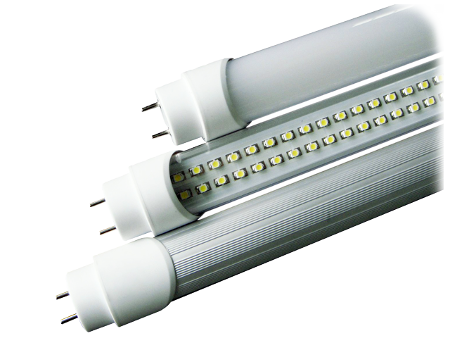

led-tubes

LEDs can easily replace fluorescent tubes.

Effectiveness

Compared to CFL bulbs, LEDs give out their light immediately which means you don’t get that period when they are warming up before you get full illumination.

LEDs come in a wider range of colours than other lights. For offices or shops, they can give very bright, white light, but in the home, you might want to ask for a ‘warm’ white or yellowish hue (around 2700 kelvin if you want to get technical). Friends may be reticent because of memories of trying earlier LED bulbs that produced a weak, pasty, unfriendly little puddle of light. Show them that LEDs have changed.

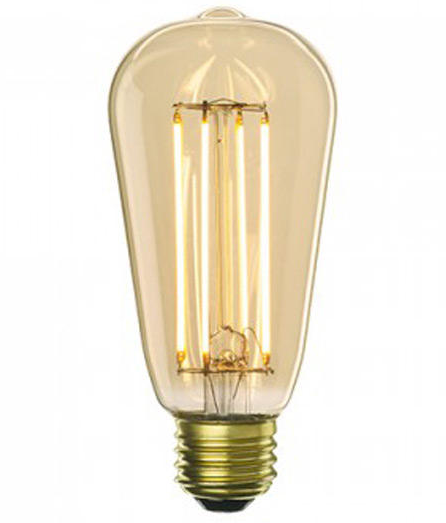

old-fashioned

You can buy LED bulbs that have the nostalgic feel of old-fashioned filament bulbs.

What can I do?

Fittings

You don’t have to change your fittings – LEDs come in screw fitting and bayonet as standard, for ceiling, wall or desk lights. More recently, excellent LED strip lights have also been developed. If you are replacing the kind of halogen bulbs with two little pins in the back, you can find LEDs to replace them too. They might be low-voltage bulbs though (for off-grid / battery systems) – so talk it through with the retailer first if you’re unsure about anything. Changing fluorescent strips can be more of an issue, and choosing the right ones needs a little more thought. Some LED strip lights are made to fit into existing fluorescent tube fittings, but others will need an electrician to do a bit of work first – again, talk to your retailer.

Here’s some more info on LED fittings for beginners.

office

Brightness

Look at lumens for brightness, not watts. Wattage tells you how much energy the bulb is using, not its brightness. For example, a typical 60-watt incandescent bulb will give 800 lumens, but an LED light will give the same brightness for around 10 watts. A 100-watt incandescent bulb and a 25-watt LED will both give around 1600 lumens.

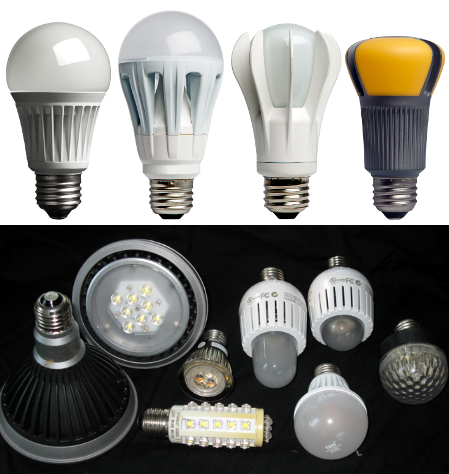

LED lighting now covers a wide range of bulbs

LED bulbs come in a huge range of styles, shapes and sizes.

Buying LEDs

LED lighting is now widely available across the UK. You can also buy online but if you want to achieve the energy and cost savings, it’s essential to buy quality. Make sure you read reviews and choose a reputable supplier or brand before you settle on a particular product. In the end, it’s worth paying a bit extra for a bulb that actually does the job you want it to do.

You don’t have to change all your bulbs at the same time. You can change to LEDs in each room as and when you can afford it. Replace bulbs that are used most first – you can save more that way. It may be worthwhile replacing existing bulbs with LEDs rather than waiting for them to die, because you will almost definitely save more energy than the embodied energy already in the halogen, filament or CFL bulb.

You can also buy low-voltage LED bulbs for off-grid / battery systems.

kitchen

Installing and using LEDs

LEDs do actually produce some heat, but they dissipate it so that the bulb stays cool. This means that LEDs might not be ideal for enclosed spaces, where they might not be able to dissipate the heat.

LED bulbs are now being developed that will work with dimmer switches – ask when you buy. If your LED isn’t compatible with a dimmer, it will cause problems such as buzzing and flickering.

Currently, non-intensive livestock farmers can benefit from government grants to install LED lighting in buildings used to house livestock.

Thanks to Richard Burdett of the Renewable Energy Hub for information and pics.
