Wind pumps: introduction

“Leaves rustle, blades turn, water moves.” – Jim Barr

What are wind pumps?

Wind pumps are devices for moving water, powered solely by the wind. There are 3 main types:

  1. direct drive: a crank on the axle of the turbine rotor raises and lowers a pump plunger via a rod
  2. geared drive: does the same, but the crank is geared to run more slowly than the turbine; smaller turbines benefit from being geared, to enable a slower pump, but with more volume
  3. electric generator on the turbine: the turbine generates electricity which drives the pump; you can then have the pump some distance from the turbine

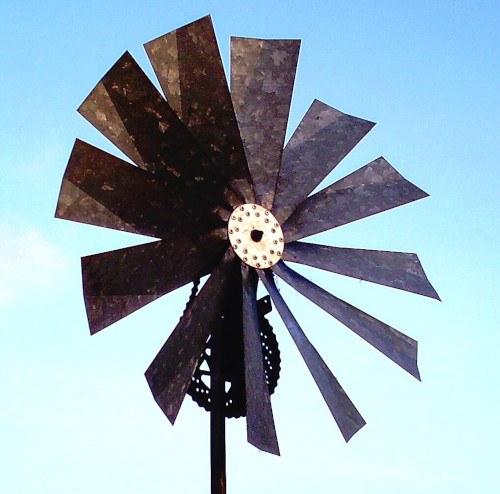

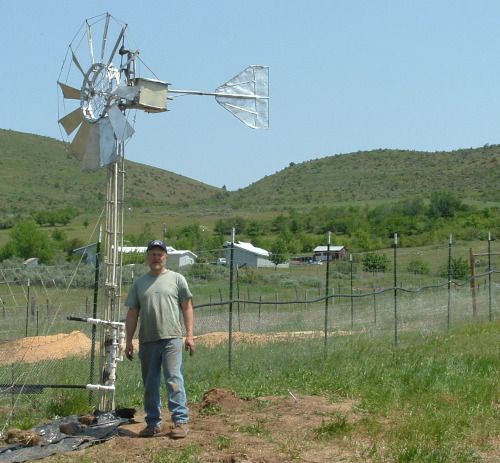

small home-made wind pump in operation

Small home-made wind pump in operation.

But generally, when people talk about wind pumps, they mean the first two types – a wind generator and a pump being two separate things. Wind pumps have a distinct look – usually having many more and flatter blades than wind generators. This allows them to operate at slower wind speeds, than required for electricity generation.

The way a wind pump works has not changed for hundreds of years. The wind causes the turbine rotor to rotate, which turns a crank, which converts the rotation into the vertical up-and-down movement of a transmission rod. The rod raises and lowers a piston in a pump comprising a cylinder and two valves. During the down stroke the cylinder fills with water, and during the up stroke the piston raises the water in the cylinder and riser, taking the water to wherever you want it.

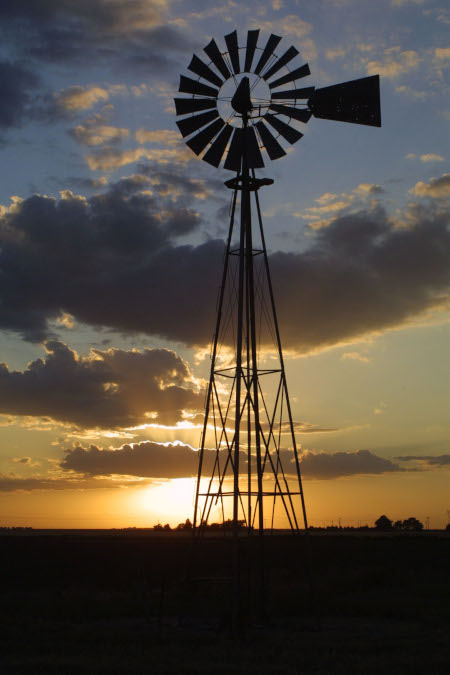

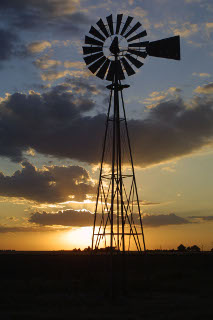

Wind pumps used to be a very familiar sight in places like the American mid-west

Wind pumps used to be a very familiar sight in places like the American mid-west; their heyday was in the 1920s, when there were 6 million in use in the US alone.

People have been using the wind to raise water for over 2000 years, mainly in China and the Middle East, and now no continent is without them. They are particularly prevalent in areas with cattle and sheep, but low rainfall, such as Australia, the mid-west of the US, and southern Africa. In fact, without wind pumps, there would be no livestock kept in those areas. The typical contemporary wind pump design was developed in the US in the 19th century, and there have been no significant design changes since.

The heyday of wind pumps was in the 1920s, with 6 million in the US alone. With the explosion in the use of fossil fuels after the war, wind pumps almost disappeared from the landscape, but as oil supply peaks and then falls, they may make a comeback – and especially in developing countries where there may be shortages of both oil and potable water.

Wind pumps can also be used domestically, but there’s a narrow development ‘window’ between walking to collect water, and having electricity and/or tap water. But electricity and mains water is not going to reach isolated livestock stations, making wind pumps much more viable.

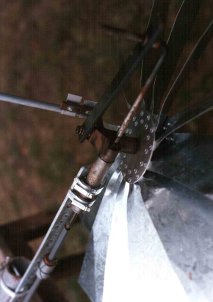

detail of a home-made wind pump

Detail of a home-made wind pump.

What are the benefits of wind pumps?

The main benefits are:

  • the energy source is free
  • there are no CO2 emissions from their use, or the pollution associated with energy generation
  • they are quite low-tech, and easy to install and maintain (if you can maintain your own bicycle, you can maintain a small wind pump)
  • they are quite durable, and require very little maintenance – usually only some grease or oil once or twice a year (making them ideal for remote locations)
  • water is set to become a scarce resource – by using a wind pump, you can recycle grey water (or rainwater) to irrigate vegetables or trees in summer

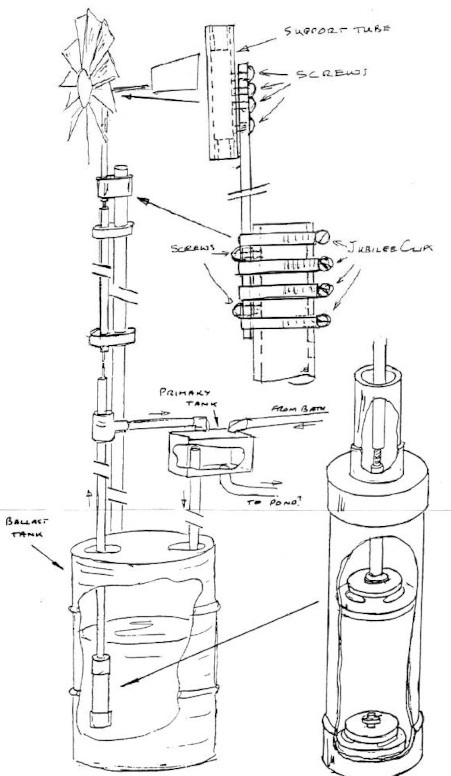

Preliminary drawing for a home-made wind pump

Preliminary drawing for a home-made wind pump.

What can I do?

You’re allowed to dig a borehole without planning permission or a licence if you’re looking at extracting small amounts (less than 20 cubic metres per day). More information here, and the company that digs your borehole can help you too. You can also use a wind pump to raise water from a pond or a tank – obviously in a position that is not going to annoy neighbours; so probably not a good idea in the ‘burbs. In other parts of the world, different rules apply, and in remote areas, there is probably very little in the way of regulation.

In the UK, a wind pump could be used by a market gardener or a smallholder to deliver water to a polytunnel or greenhouse. Rainwater or grey water could be collected in a tank, and then pumped higher, so that it can flow downhill into an irrigation system. It could also be used by fish farmers to aerate ponds.

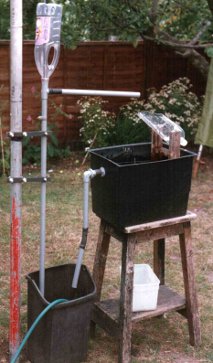

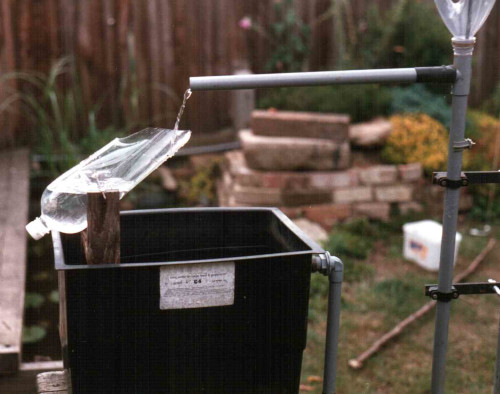

Home-made biological filter and surge tank for recycling grey water; details of its construction and use can be found in How to Build a Wind Pump.

Poldaw are the only wind pumps that we know of that you can buy in the UK. However, you can build your own wind pump if you have engineering skills and you like messing about in sheds. See the Lowimpact.org book How to Build a Wind Pump for detailed instructions on building and maintaining your own wind pump; plus there is advice about pipework, storage and filtering (the wind pump described in the book is smaller than the smallest Poldaw pump; anything smaller than the rotor described in the book wouldn’t move any useful volumes of water). Some precision skills are required to build a wind pump, but it is low-tech, it doesn’t matter if it rattles, and it can be made from scrap materials.

The wind pump needs to be directly over the body of water you want to move, but if the tank is uphill from the pump, water can be piped downhill to a sump at the base of the pump.



Thanks to Jim Barr for information.


We'd love to hear your comments, tips and advice on this topic, and if you post a query, we'll try to get a specialist in our network to answer it for you.
