Cooking with stored energy: how to build an off-grid solar slow cooker

Blog home
2
Posted Aug 30 2018 by Seggy Segaran of Haybox Cooking
A DIY solar slow cooker as made by Jane & Seggy Segaran

We learn from our resident retained heat cooking specialists Jane and Seggy Segaran about how to build an off-grid solar slow cooker.


We have been experimenting with solar and haybox cookers for some time. When discussing solar cooking the objections that come up are: How does one cook in the evenings or on cloudy days? For this reason we decided to explore an option of a slow cooker powered by a battery which has been charged by a solar panel.

Some background

The cooker was to use a heating element driven from a 12V battery and a power rating around 50 watts. At this low power rating it was possible to use a solar panel and battery arrangement and avoid having to use 230V (or 110V) mains voltages.

The heating element for the solar slow cooker

Our first task was to find a suitable heating element and was surprised to find one quickly on E-Bay. It was priced at £15 ($22). All one had to do was to connect it directly to a 12V supply and it was waterproof – an essential requirement inside a cooker. In air they will settle at a temperature of approx 160 to 170C. The waterproof covering can handle a maximum temperature of approx 220C. After some experimentation we settled on the 90 watt one. This took around 7 amps of current from a 12V battery.

Then we invested in a 100W solar panel (£100) and a 10 Amp charge controller (£10). When connecting up a solar panel to a battery and a load using a charge controller is essential. They are easy to wire up and prevents the battery from over charging. They also prevent the battery from discharging through the panel at night. Finally when driving a load, the charge controller prevents batteries from going completely flat as this can damage it. The image above shows how easy it is to wire this up.



The charge controller for the solar slow cooker



The last investment was a 75 Ah leisure battery at a cost of £55. Leisure batteries are different from car batteries in that they are meant to be charged and discharged many times. The main precaution to take with batteries is to prevent accidental shorting as this can result in a fire. The best way to avoid this is to fit a fuse very close to the positive terminal.

Now for some maths…

A fully charged 75Ah battery can supply 7 amps for just over 10 hours. The Ah stands for Ampere Hours i.e. current multiplied by time in hours. The heating pad takes 7 Amps and with a 12V battery the power is 84 watts i.e. current multiplied by voltage. Our experiments showed that not all this power ended up in cooking the food – only about 40 to 60 watts.

A 100 W solar panel can provide a peak power of 70 to 80 Watts. If it is in a fixed orientation (and does not track the sun) then my estimate was 50 watts average power over a 6 hour period. 50 watts means a current of around 4 Amps going into a 12 V battery. So to fully charge a 75 Ah battery is going to take around 20 hours – or just over 3 days. So 3 days of charging will provide 10 hours of cooking. The battery acts as a reservoir charging from the sun and discharging into the heating pad as required so it’s never fully charged or fully discharged (unless we have many days without sun).

Solar cooking with stored energy

Unlike conventional slow cookers which use around 300 watts this one had to run at a power of 50 to 60 watts so required max insulation. We constructed one by using 70 mm thick insulation all round and this gave good results. This was made up of 50 mm of Kingspan type insulation and 20 mm of cardboard packaging sandwiched together. We used kitchen aluminium foil to line the insulation together and held it in place with aluminium tape.

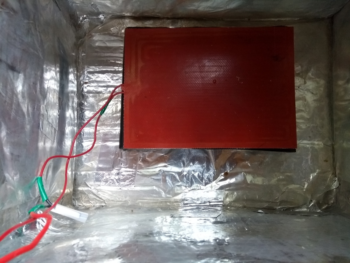

The rubber heating pad inside the solar slow cooker

Credit: Jane & Seggy Segaran

The rubber pad sat on a piece of bent metal to hold it off the base of the cooker. When baking, the tray sat on top of the rubber heating pad. This means that the base of the tray can get quite hot and burn the cookies – so it was necessary to turn these over part way through. Once the baking tray has warmed up it took around 30 minutes per batch.

Oat cookies 'baked' in the solar slow cooker

Credit: Jane & Seggy Segaran

We also added a re-settable thermal fuse in series with the heating pad – this was rated at 120 degrees centigrade and helped regulate the temperature. The image below is in the garden shed where the cooking is taking place just with a 90 watt heating pad driven by a 12V battery.

The solar panel used to charge the solar slow cooker

Credit: Jane & Seggy Segaran

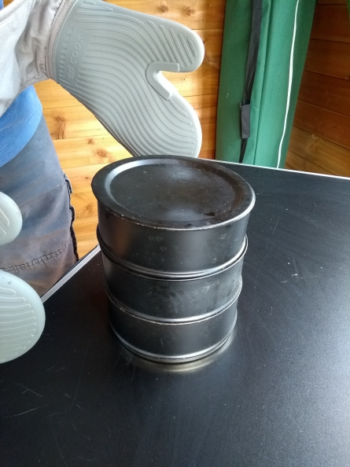

A 3-container Tiffin like the one shown here can help greatly when using this slow cooker. Here you can see onions, courgettes and aubergines being cooked separately before being combined in a curry. We have also successfully cooked rice (around 1 hour for 2 portions) and curry (around 1.5 hours for 2 portions) in this off-grid slow cooker.

A three-tier tiffin is a useful vessel when using a solar slow cooker

Credit: Jane & Seggy Segaran

A trio of vegetables prepared in the solar slow cooker

Credit: Jane & Seggy Segaran

If you are building a cooker or thinking about it, please don’t hesitate to ask us for assistance as to where to buy components or recipes.


About the authors

Jane and Seggy Segaran have been involved for many years with low-energy cooking techniques. Having tinkered with solar cooking and rocket stoves, their main focus is now haybox cooking. Their publication Haybox Cooking is available for sale and part of the proceeds go towards funding educational projects on fireless cookers in East Africa.
